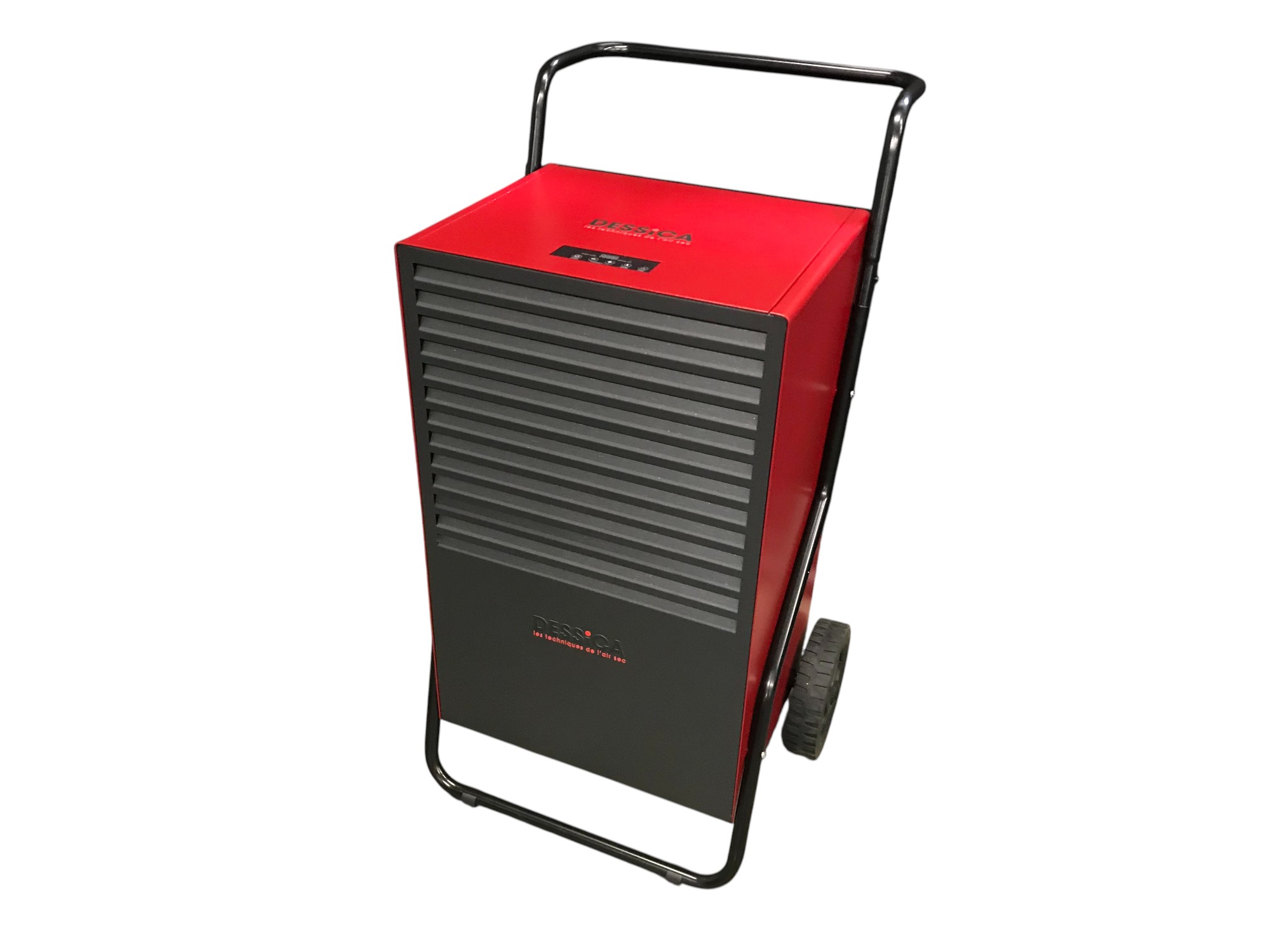

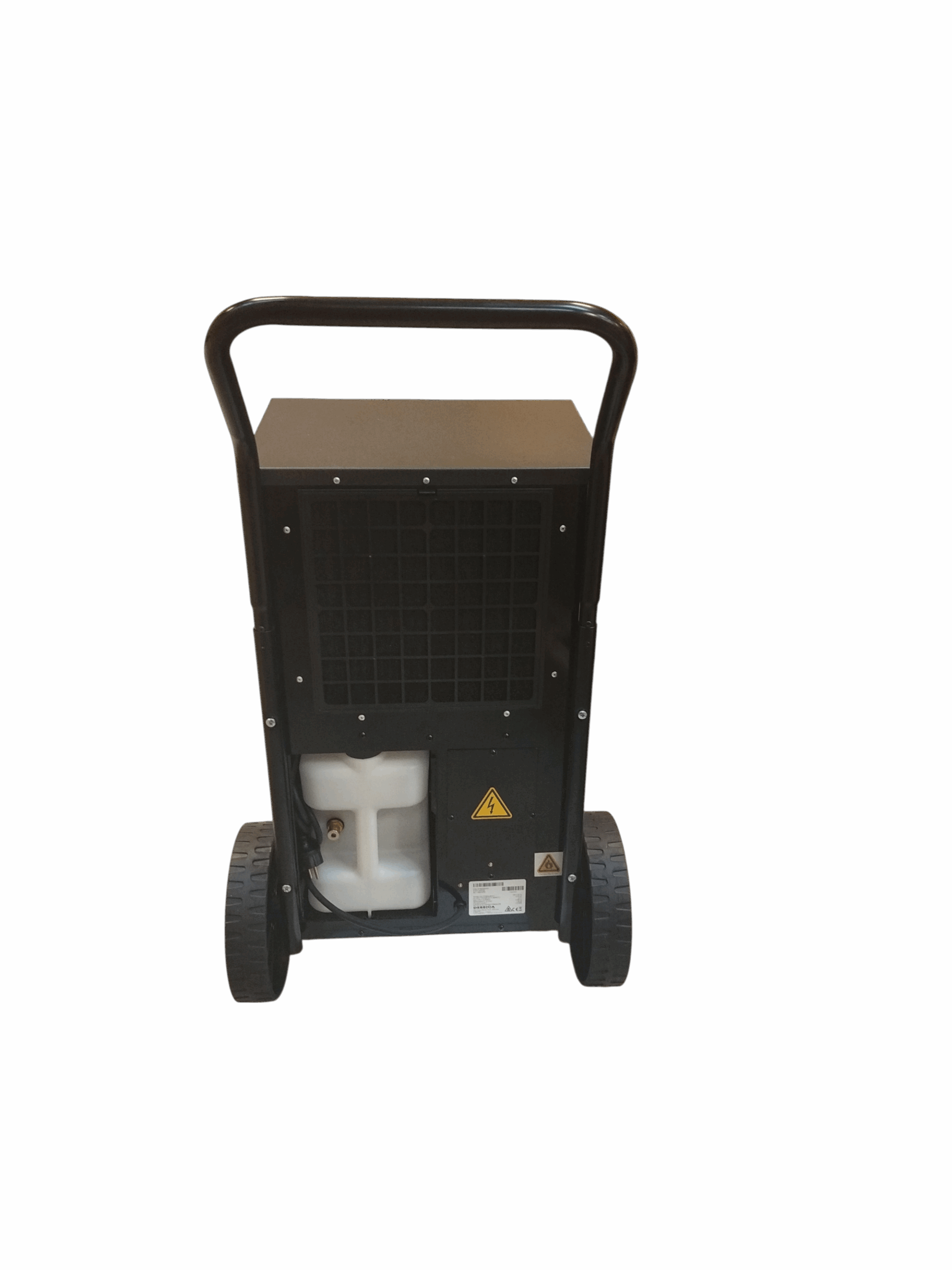

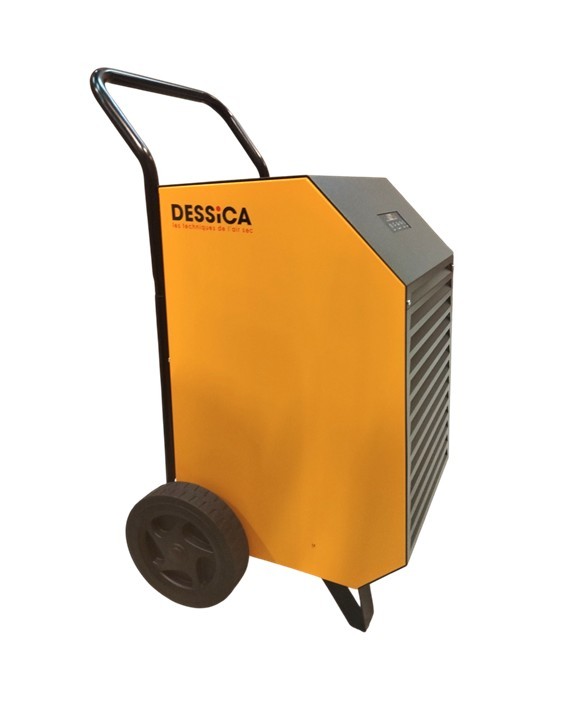

The DRY dehumidifier is designed to adapt to all types of industrial environments : storage or building. The DRY works by condensing the water vapor contained in the air. Built with a monobloc steel casing with epoxy paint, it is equipped with hermetic refrigeration compressor, centrifugal fan, washable air filter and separate hygrostat. The refrigerant used is R410A. The condensate is drained by flowing into a water drain. Option: fixed installation with working order

Operating principle

The DRY dehumidifier is made up of different internal elements, in which a refrigerant circulates in different forms, allowing to decrease the humidity of the air. The humid air, previously filtered, is cooled in contact with the evaporative cooler, which causes condensation and a lowering of humidity. The air is then heated in contact with the heat exchanger, which makes it possible to reduce the temperature of the refrigerant. A fan drives the air flow in the circuit. The cycle is repeated until the humidity reaches the set point.
