DESCRIPTION OF DP092J

The DP range of dehumidifiers is designed to meet the different needs of users in industry, particularly for production and packaging environments and drying processes. DP rotary dehumidifiers operate using the solid adsorbent air dehumidification process. The DP are equipped with a continuously regenerated high performance PPS silica gel desiccant wheel. They also include a double skinned 30mm insulated stainless steel casing, two fans with EC motor (electronic commutation), single or double stage filtration, a regeneration heating coil, a power and control panel controlled by a PLC.

TECHNICAL DATA

  • Dry air flow range  : de 3000 à 7800 m3/h
  • Electrical power  : 60,75 kW
  • Wet air flow : 2025 m3/h

FEATURES

In addition to the adsorption air dehumidification system, the DP units can be configured with the following equipment and functions:

➔ Filtration

  • Pre-filtration from G4 to F9

  • Final filtration from F8 to H14


➔ Regeneration heater

  • Electric heater

  • Air/steam heat exchanger

  • Air/water heat exchanger

  • Air stream gas burner


➔ Control

  • Regeneration temperature

  • External start and operation return

  • Rotor rotation guard

  • Operating time

  • Filter guard

  • TCP IP communication with Ethernet or RS485 port


➔ Integrated heating or cooling in additional units

  • Chilled air/water heat exchanger

  • Air/hot water or water/steam exchanger

  • Electric heater


➔ PID control

  • Humidity

  • Process air flow rate

  • Regeneration air flow rate

  • Pre-treatment temperature

  • Post-treatment temperature


Each DP is equipped with an electrical cabinet containing the power and control elements including:

  • Circuit breaker

  • Automatic control screen

  • Emergency stop button


The PLC manages the following functions:

  • Start and stop sequence

  • Machine safety

  • Faults


The following functions are available on the screen:

  • Operating mode

  • Faults

  • Setpoint and control parameters

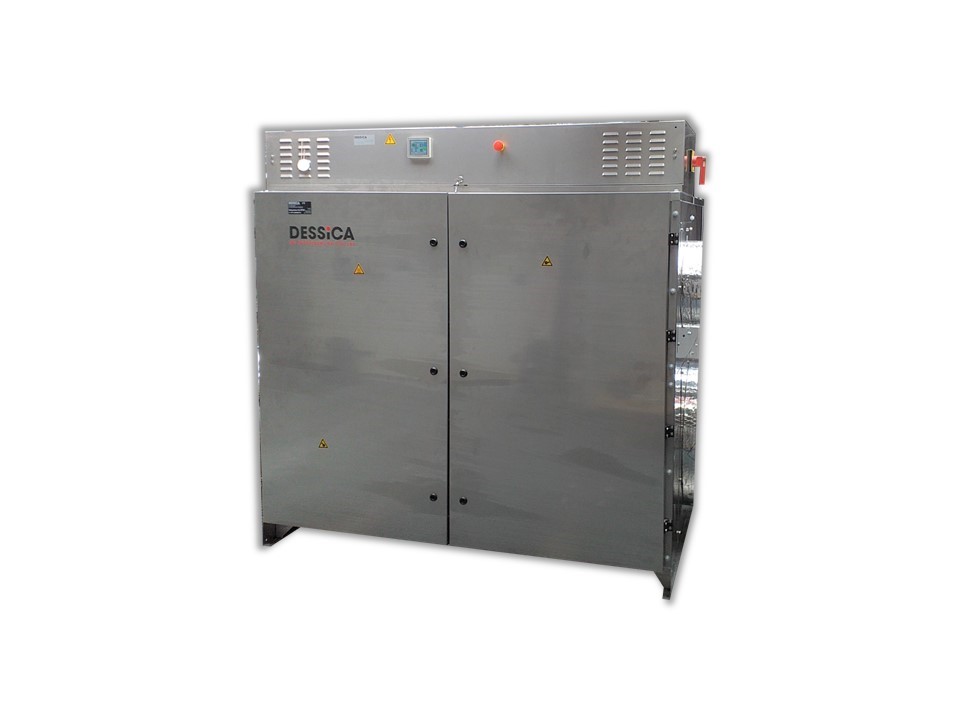

Air dehumidifier DP092J

REF : DP092J
Many configurations
Casing in stainless steel
High performance desiccant rotor
Configurable access easement
Simple maintenance
High efficiency fans with EC motor
Integrated controls (humidity, temperature and air flow rates)
Programmable logic controller (PLC)

Price on request
