Description of DM600-2T

The DM range of dehumidifiers is designed to meet the different needs of users in construction and industry, particularly for the storage and production. The rotary air dehumidifier DM works by adsorption with a high performance Silicagel PPS desiccant rotor continuously reactivated. The stainless casing includes fan(s) with EC motor (Electronically Commutated) on control potentiometer, air filters (G4), an electric heater, an electrical power and control terminals.

Technical data

  • Nominal air flow : 600 m3/h
  • Available pressure : 100 Pa
  • Dehumidification capacity (20°C and 60% RH) : 3,2 kg/h
  • Dry air flow range : de 360 à 600 m3/h
  • Wet air flow : 150 m3/h
  • Available pressure : 150Pa
  • Reactivation electrical power : 4,5 kW
  • Electrical power : 5,3 kW - 400V

Features

In addition to the adsorption air dehumidification system, DM units can be supplied with the following equipment and functions:

➔ Standard

  • G4 filtration

  • 1M version: with handle

  • 2M version: potentiometer

  • Of/off control system

  • Ammeter


➔ Options

  • Potentiometer

  • Hour meter

  • Process air connecter

  • Filter box(es)

  • 19mm insulation

  • Frame and wheels

Documentation

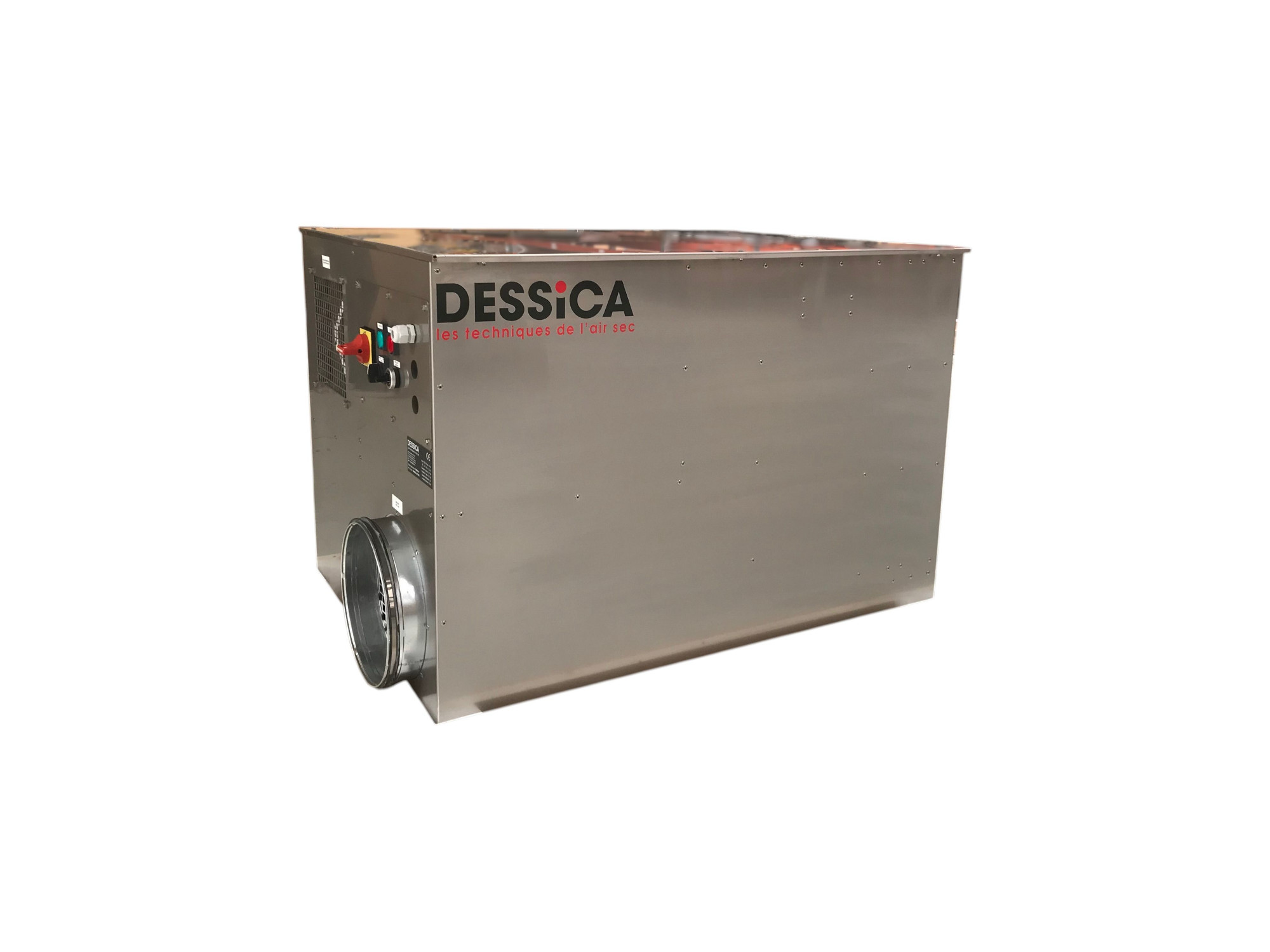

Air dehumidifier DM600-2T

REF : DM600-2T
Casing in stainless steel
High performance desiccant rotor
PTC reactivation heater to eliminate the overheating risk
Adjustable air flow potentiometer
Reliability and simple maintenance

Price on request
Request a quote
