DESCRIPTION OF DM200-2M

The DM range of dehumidifiers is designed to meet the different needs of users in construction and industry, particularly for the storage and production. The rotary air dehumidifier DM works by adsorption with a high performance Silicagel PPS desiccant rotor continuously reactivated. The stainless casing includes fan(s) with EC motor (Electronically Commutated) on control potentiometer, air filters (G4), an electric heater, an electrical power and control terminals.

TECHNICAL DATA

  • Nominal air flow : 200 m3/h
  • Available pressure : 250Pa
  • Dehumidification capacity (20°C and 60% RH) : 0,6 kg/h
  • Dry air flow range : de 120 à 200 m3/h
  • Wet air flow : 40 m3/h
  • Available pressure : 150Pa
  • Reactivation electrical power : 0,8 kW
  • Electrical power : 0,9 kW - 230V

FEATURES

In addition to the adsorption air dehumidification system, DM units can be supplied with the following equipment and functions:

➔ Standard

  • G4 filtration

  • 1M version: with handle

  • 2M version: potentiometer

  • Of/off control system

  • Ammeter


➔ Options

  • Potentiometer

  • Hour meter

  • Process air connecter

  • Filter box(es)

  • 19mm insulation

  • Frame and wheels

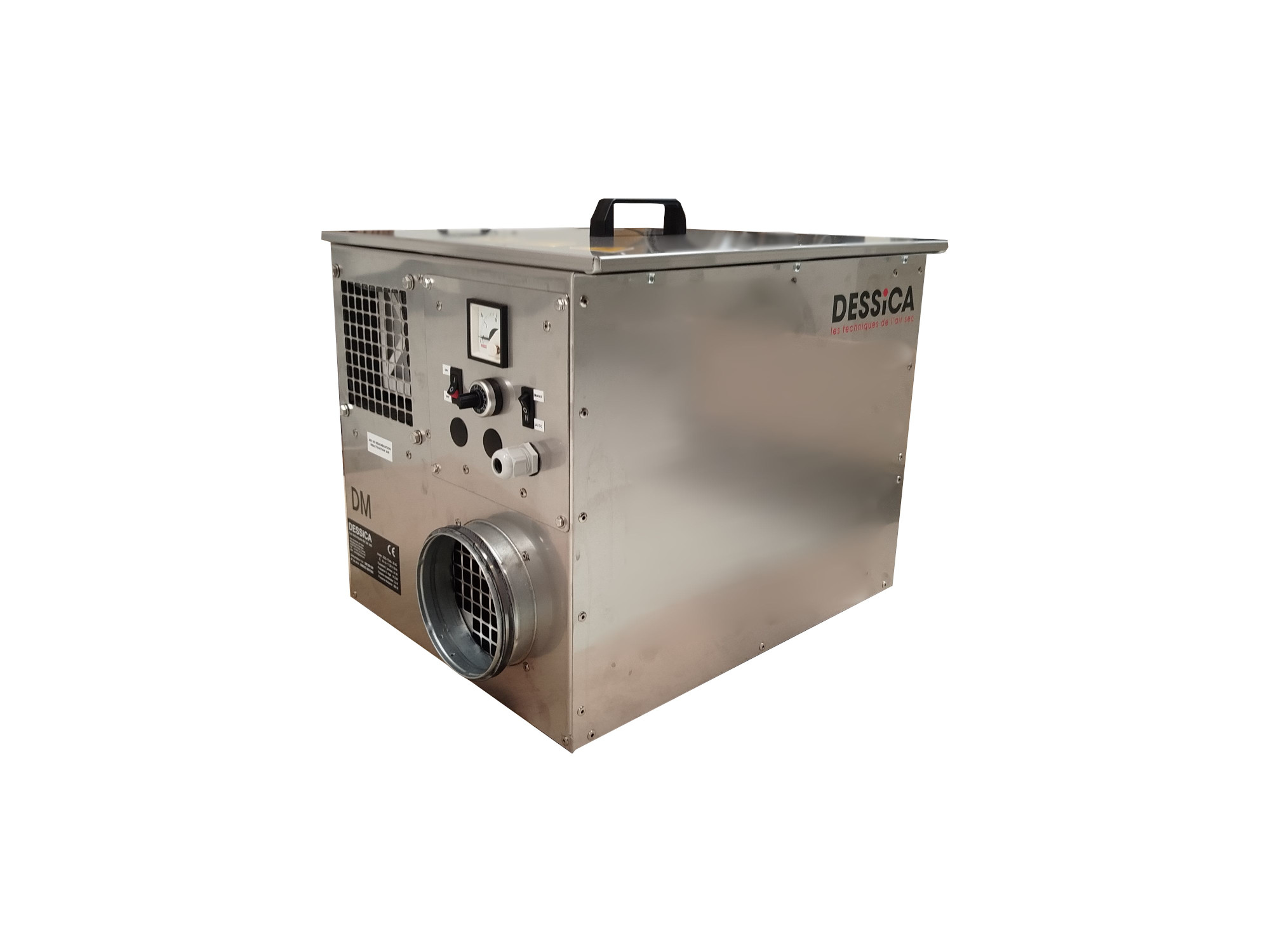

Air dehumidifier DM200-2M

REF : DM200-2M
Casing in stainless steel
High performance desiccant rotor
PTC reactivation heater to eliminate the overheating risk
Adjustable air flow potentiometer
Reliability and simple maintenance
